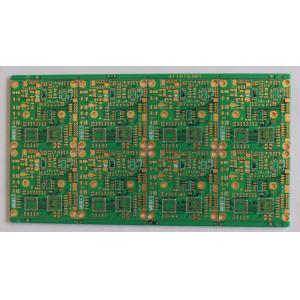

Large Immersion Gold Multilayer PCB Design FR4 1oz For Special Medical Equipment

Multilayer PCB

Manufacturing Multilayer PCBs (Up to 16 Layers)

The demand for multilayer boards has been on the rise. The drive for electronics to be smaller, faster, and more powerful has made the multilayer PCB much more popular. The ability to create multilayer boards opens up a world of possibilities allowing the engineer to create more densely populated circuit boards which allows miniaturization. This is a huge benefit that double sided boards are not able to offer.

Multilayer PCBs are only a little different that the Double Sided PCBs.

Multi Layer PCB StackupAs you can see in the image below, a four-layer board starts with a rigid core of FR4 and copper. The internal core is processed for traces on those prior to the other fiberglass and copper being added, and the entire board is laminated together.

There is the B stage PrePreg, which is fiberglass that is still soft that will need to be heated in order to become rigid. It acts like a glue to keep the inner core adhered to the outer copper foil.

The copper foil added consists of very thin and loose sheets of copper. They are sandwiched together with the Prepreg and inner core, and placed in a PCB Lamination Press. Pressure and heat are applied to the material, which causes the Prepreg to “flow” and bind the layers together. Once it cools, the fiberglass is then hard and the entire board is very rigid.

After lamination of the board, the outer layers are processed for traces and drilling. We will discuss those steps in greater detail in later articles.

That gives the basics of the starting material for a Double Sided PCB and Multi Layer PCB. Is it what you expected or thought it would be?

For Multilayer PCB , We support Fr4, Rogers , Aluminum , Flexible PCB material . Welcome to send your design to us.

Benefits of Multilayer PCBs (compared to single or double-sided PCBs)

• Higher assembly density
• Smaller size (considerable savings on space)
• Increased flexibility
• Easier incorporation controlled impedance features.
• EMI shielding through careful placement of power and ground layers.
• Reduces the need for interconnection wiring harnesses (reduces overall weight)

Global Success Circuits Co., Ltd.  (www.szgpc.com)  was established in Shenzhen China on May 2005, which is a world’s leading PCB manufacturer focused on high-precision double sided and multilayer PCB, Aluminium PCB, HDI and Rigid-Flex PCB, and SMT assembly one service. After more than 10 years developing, Global Success based on accurate market positioning, customer-centric service concept and excellent corporate culture, it has become a group company with a number of subsidiaries in Shenzhen, Jiangxi, Jiangsu and employ more than 1000 people.

     Global Success owns mature PCB manufacturing technology, state-of-the-art process technique and production process control technology of the industrial, as well as the professional R&D team. Furthermore, Global Success has gradually got ISO9001 Quality Management System Authentification, UL, CQC, ISO14001 Environment Management System Authentification, ISO/TS16949 Car Quality Management System Authentification and OHSA18001 Occupation Health and Safety Management System certificate. As a leading global PCB manufacturer, Global Success has consistently adhered to the customer-centric, market-oriented core value over the years. Sincerely cooperate, abide by its commitment,to provide high quality service to customers around the world with all efforts,strive to realize Win-Win with customers and cooperative partner. At the same time,as a corporate citizen, we actively carry out all kinds of social responsibility, devote to become the practitioners of era responsibility and the social civilization spreader.

We hope to establish the strategic partnership with customers, constantly strive to the corporate vision of  “to become a one-stop PCB and PCBA service experts”!
