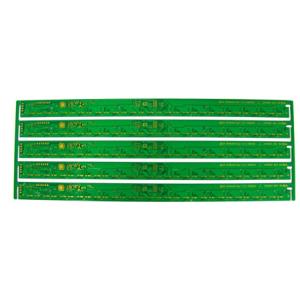

    0.2mm Security Copper Circuit Board 4 Mil Four Layer PCB Assembly Services

    0.2mm Security Copper Circuit Board 4 Mil Four Layer PCB Assembly Services


    Security PCB manufacture


    More and more people invested in residential homes and commercial businesses security system to keep their most valuable assets protected.

    Security products include but not limit to alarms system wireless, CCTV camera, CCTV DVR, EAS system, access control systems,wireless security cameras, network and so on.

    Printed Circuit Boards like as Flexible PCB, High Multilayer PCB,Gold Finger PCB,HDI PCB, double sided pcbs provided by China PCB Supplier are widely used in electronic security products......

    CategoryDescriptionCapability
    Laminate MaterialFR4, High TG FR4(tg150,tg170,tg180)
    Halogen-free FR4, CEM1, CEM3,Polyimide,
    Rogers ,Aluminum
    We will order other special material accoprding to your request
    Board LayersMaximum layers1-18layers
    SizeMaximum finished dimensions500*1200mm
    Board ThicknessMinimum and Maximum0.2-3.2mm
    CopperOuter copper weight0.5oz (17um) - 4oz (140um)
    Inner copper weight0.5oz (17um) - 4 oz (105um)
    DrillingMinimum drilling size0.15mm
    Drill Deviation (True position size)2mil (0.050mm)
    PTH hole tolerance3mil (0.075mm)
    N-PTH hole tolerance2mil (0.050mm)
    Minimum hole wall thickness20um
    Angle of Countersink80°, 90°, 100°, 120°
    Circuit lineMinimum width0.1mm/ 4mil
    Minimum space0.1mm/ 4mil
    Inner LayersMinimum space from drilling to inner pattern6mil (0.15mm)
    Minimum space from annular ring to inner pattern6mil (0.15mm)
    Layer-to-layer registration3mil (0.08mm)
    Board ProfillingHole to board edge tolerance±4mil (0.1mm)
    Pattern to board edge tolerance±4mil (0.1mm)
    CNC Tolerance±4mil (0.1mm)
    Minmum thickness after V-Cut12mil (0.3mm)
    V-Cut tolerance±5mil (0.12mm)
    V-Cut Angle20,30,45,60
    Solder maskColorgreen, light green, matte green, white black,matte black,yellow,red, blue
    Thickness≥17um
    SilkscreenColorWhite, black, yellow,
    red, blue, green, gray
    Minimum line height≥0.0625mm
    Minimum line width≥0.125mm
    Surface FinishHASL, HASL pb free, immersion gold, immersion silver, O.S.P
    CertificationIPC-A-600 Class II/III, UL E324220, ISO 9001,ISO/TS16949, ROHS

    4 Sided Printed Circuit Board
    2.00mm board thickness
    1OZ finish copper thickness
    ENIG Surface Finish
    Min Track/Space: 5/5mil
    Min hole: 0.40mm
    Solder Mask: Green Solder Mask
